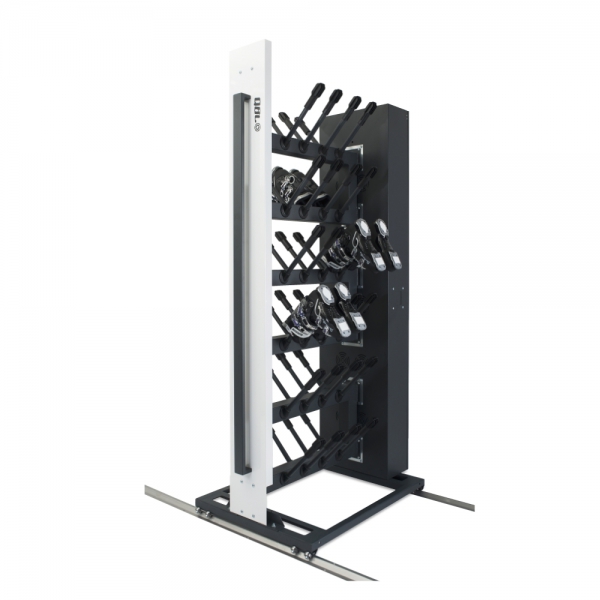

An exceptional visual feature of the MiniPanel line is its design with a stylish white panel and a grey handle attached to the front column.
It consists of a control cabinet, which includes such components as heaters, air fans or an optional distribution system of disinfectant, and of three double levels with diagonal arms for boot placement. The drying system is comprised of high-quality industrial products that are durable and adapted to a continuous permanent work. Each of the applied components that influence the machine’s efficiency went through a long period of tests and selection, which in the end resulted in the high efficiency of drying.
Drying and disinfection systems are controlled electronically through a modern control panel built into a sidewall of the cabinet. With only a few buttons, it is possible to set functions for every level of the dryer, to choose air temperature for each level, or to program frequency and intensity of disinfectant’s distribution.
Moreover, thanks to the electronic time control function, it is possible to program time periods for the device’s operation. The device is equipped with nozzles that open the stream of air only when the boots are placed on the diagonal arms. Therefore, the entire drying force focuses only on the units with boots.
The functionality of controlling three segments, the ability to control the dryer’s working time and the application of special nozzles result in a highly efficient drying and a low energy use.
The dryer can be optionally equipped either with a disinfection system with a built-in recipient for disinfectant liquid, or with an ionization technology-based lamp with germicidal properties. The boot dryer can be successfully used to dry skates.
FEATURES
- electronic control over different units of the device and the air temperature
- possibility to set time for automatic start and shutdown of the device
- selected durable components of industrial nature
- arms for placing boots finished with special nozzles with air stream
- very high efficiency of air fans and heating components
- optional disinfection system or ionization lamp
- interesting design thanks to an elegant combination of a white panel with a grey handle
- can be mounted on rails, or on feet - electronically controlled levels
| Délka | Šířka | Výška | Kapacita |
|---|---|---|---|
| 1500 mm | 800 mm | 2250 mm | 48 |
| 1800 mm | 800 mm | 2250 mm | 60 |
| 2000 mm | 800 mm | 2250 mm | 72 |
| 2400 mm | 800 mm | 2250 mm | 84 |
| Power consumption* | Power consumption** | Voltage |
|---|---|---|
| 246 / 5680 W | 492 / 7730 W | 3 x 400 V |
*without heating / with heating – for dryers 1500 mm and 1800 mm wide
**without heating / with heating – for dryers 2000 mm and 2400 mm wide
